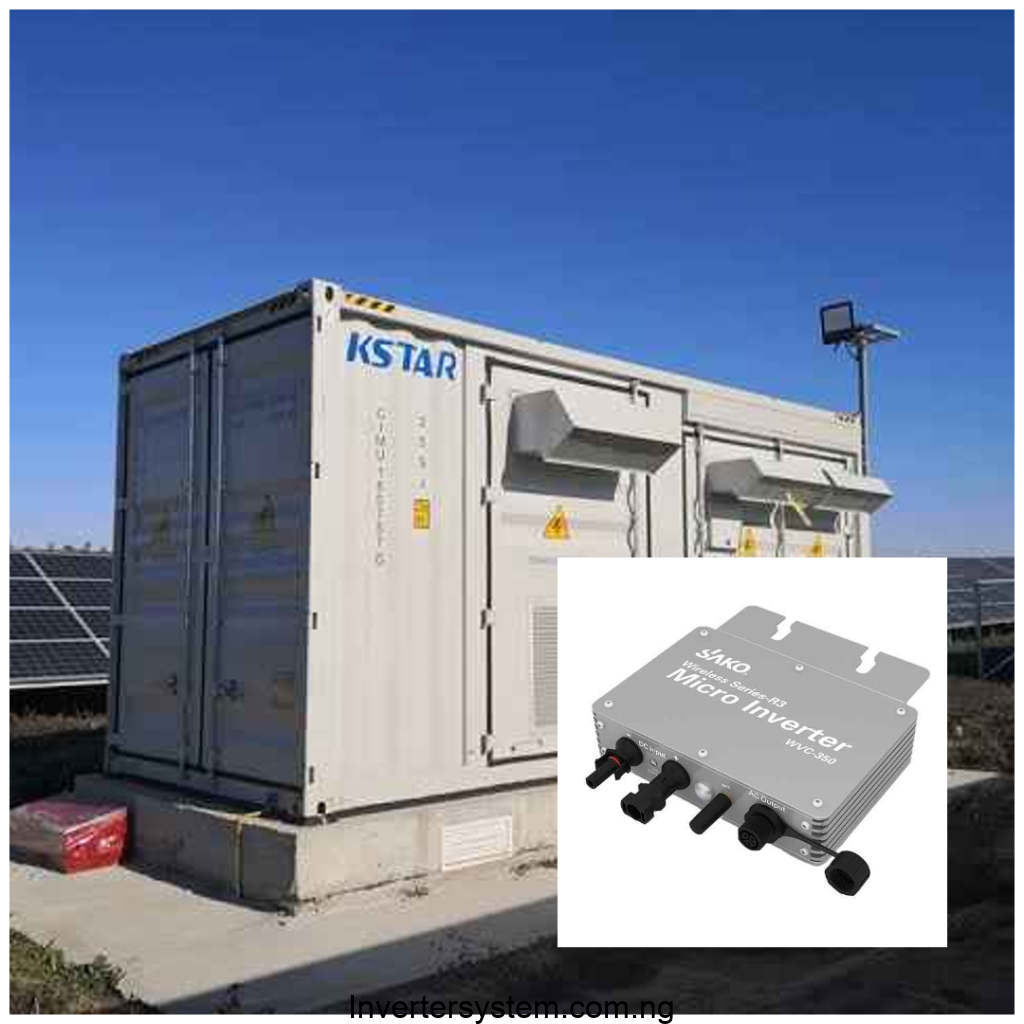

Central Inverter vs Microinverter: In-Depth Product Comparison Review
Investing in a solar energy system is one of the best decisions you can make for both environmental and financial reasons, but when considering the transition, choosing the right inverter can be challenging. Should you opt for a central inverter, which is a tried-and-true option for many large installations, or should you go with microinverters that promise improved efficiency and adaptability? This decision isn’t always straightforward, as each inverter type has unique strengths and weaknesses that can significantly affect performance, installation, cost, and long-term value.
This review will break down the technical details, costs, advantages, and potential drawbacks of each system. By understanding the core differences and benefits of central inverters vs. microinverters, you’ll be better equipped to select the system that meets your unique needs. Let’s get in to discover something interesting.
Central Inverters and Microinverters
What is a Central Inverter?
A central inverter (often referred to as a string inverter) serves as the heart of the solar power system. It connects multiple solar panels in a series (or “string”) and converts the DC (direct current) electricity generated by the panels into AC (alternating current) electricity, which is usable by household appliances.
Central inverters are commonly used in large solar installations, both residential and commercial. These systems are more cost-effective for larger arrays because you only need one inverter to handle multiple panels. Their installation is relatively straightforward, and maintenance is easier since everything is centralized in one location.
However, one of the major challenges is that the efficiency of a central inverter is compromised if even one panel in the array is shaded or obstructed, as all panels in the string will produce power at the same rate as the weakest link. Therefore, its performance is highly dependent on the array’s uniformity.
What is a Microinverter?
Unlike central inverters, microinverters work on a per-panel basis, meaning each solar panel is paired with its own inverter. The DC power from each individual panel is converted to AC power locally, optimizing the efficiency of each panel independently.
This setup has numerous benefits, particularly in environments where shading is a concern. Each panel operates at its peak capacity without being affected by the performance of other panels in the array. Microinverters are particularly popular for residential solar systems with complex roof structures or trees that cast shade on portions of the panels.

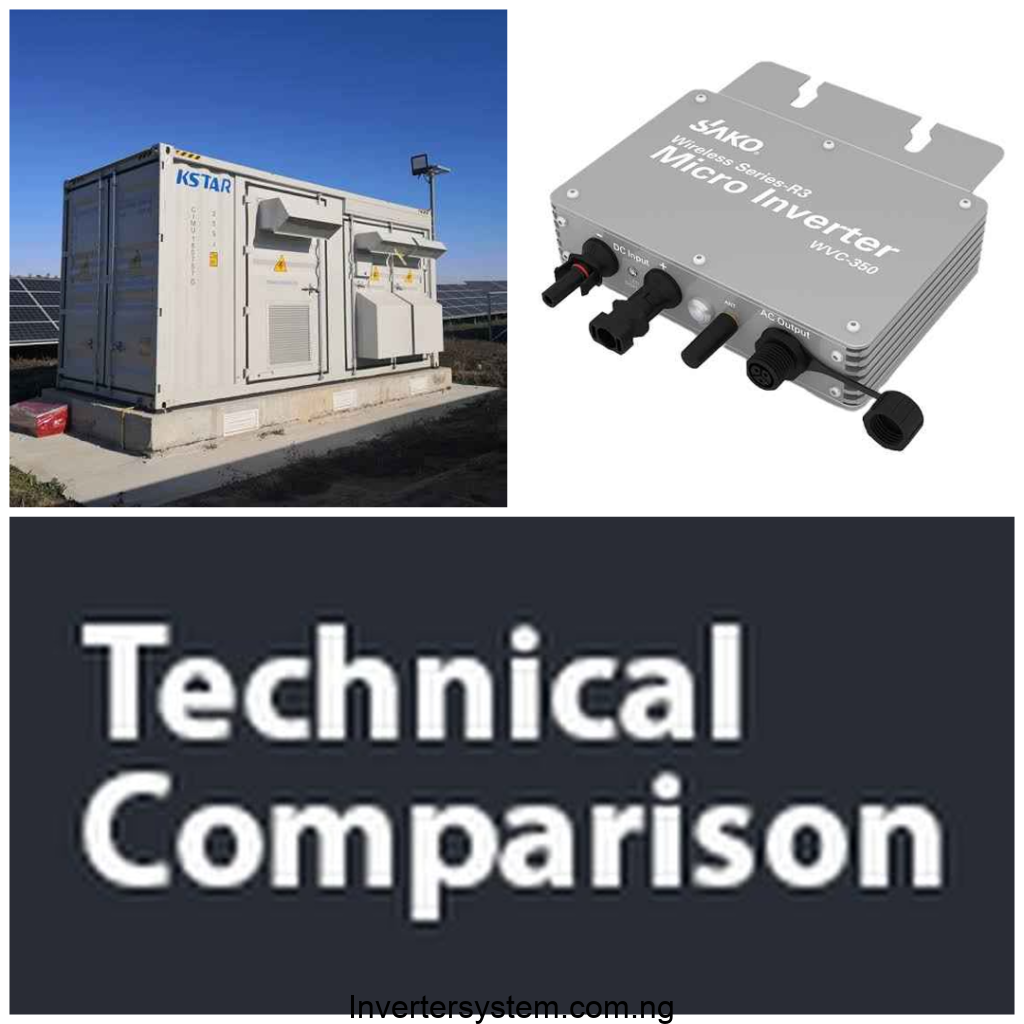

Technical Comparison
Energy Conversion Efficiency
One of the key considerations when choosing an inverter is its energy conversion efficiency. Microinverters have an inherent advantage in this regard, as they allow each panel to function independently, ensuring that the power output consistency remains high even if parts of the system are shaded. Each microinverter optimizes the output of its assigned panel, which means it can adjust for local conditions, whether that be shading, dirt, or varying angles of sunlight.
In contrast, central inverters operate on a “string” system, where multiple panels are connected together. If even one panel experiences shading or debris, the output from the entire string drops, potentially reducing overall system efficiency. However, central inverters can still be highly efficient in ideal conditions where panels receive consistent sunlight.
Microinverters thus shine when it comes to shading performance and the ability to maximize output even in less-than-ideal conditions. If your roof has uneven sunlight exposure or obstacles like trees, chimneys, or air conditioning units, microinverters will often outperform central inverters in terms of total energy production.
Reliability and Performance
Central inverters tend to be more reliable in controlled, uniform environments. Because the system is centralized and the inverter is installed in a single location, maintenance and troubleshooting can be relatively simple. However, in real-world conditions, microinverters can offer superior reliability because of their distributed nature. Should one microinverter fail, only the corresponding panel is affected, and the rest of the system continues to work as normal. In contrast, if a central inverter fails, it may shut down the entire system, requiring a more significant repair or replacement.
Furthermore, microinverters have a longer lifespan, typically lasting 25 years, compared to central inverters, which generally need replacement after 10-15 years. This extended lifespan can offer a better long-term investment, especially in residential systems where maintenance and repair costs can quickly add up.
Heat Dissipation and Cooling Needs
Heat management is crucial for maintaining the efficiency of any inverter system. Central inverters are usually located in a shaded area or utility room where they can be kept cool, often with built-in fans or vents. This central location allows them to dissipate heat effectively, but it can also lead to performance loss if the unit becomes too hot or if its ventilation is obstructed.
Microinverters, on the other hand, are mounted directly behind each solar panel. This distributed design enables each unit to cool down naturally, as the heat dissipation happens at the panel level. Microinverters generally perform better in extreme heat because each inverter is directly exposed to the ambient temperature around the panel. However, they may require more frequent inspections if installed in areas with extreme weather conditions, such as high winds or heavy snow.
Installation and Maintenance
Installation Requirements
One of the main factors influencing installation is the complexity of wiring and system configuration. Central inverters are relatively simple to install since they require just one unit to manage multiple panels. The system only needs one connection point to the grid, which makes central inverters cost-effective for larger installations.
On the other hand, microinverters require a separate inverter for each panel. This increases the initial installation cost, as each unit needs to be wired individually. The installation is more labor-intensive, and the labor costs can be higher as a result. However, because microinverters allow for modular expansion, they offer greater flexibility if you plan to expand your system in the future.
Maintenance Needs
In terms of maintenance, central inverters are generally easier to maintain because they are located in a single area, so any issues with the inverter can be identified and fixed in one place. However, any failure in the central inverter could affect the entire system, leading to downtime.
With microinverters, maintenance can be more distributed. While a failure of a single microinverter doesn’t affect the entire system, it may take more time to diagnose the issue. However, the monitoring systems available with microinverters (such as Enphase’s Enlighten app) allow users to track performance on a per-panel basis, helping to identify any problems quickly and easily.
Performance in Shaded and Low-Light Conditions
Shading can significantly affect a solar system’s performance, especially for central inverters. If a single panel in a string is shaded, the entire string’s energy output drops, leading to inefficiencies. This is a major disadvantage in areas where trees, nearby buildings, or weather conditions cause shading at certain times of day.
Microinverters provide a solution to this problem by allowing each panel to work independently. As each microinverter is linked to one panel, its performance is not affected by the shading of other panels. This makes microinverters a great choice for homes with trees or uneven rooftops. Even in low-light conditions, where central inverters might struggle, microinverters maintain optimal performance, improving overall energy yield.
Cost Comparison
Initial Purchase and Installation Cost
Central inverters are typically more affordable initially, particularly for larger systems. The cost of one central inverter is less than multiple microinverters, and installation is simpler, which reduces labor costs. For a large solar system, the upfront investment for a central inverter system could be more budget-friendly.
However, microinverters come with higher upfront costs. You’ll need to purchase an inverter for each solar panel, which can quickly add up, especially if you’re installing a larger system. Additionally, installation costs may be higher due to the more complex setup.
Long-Term Cost-Effectiveness
In the long run, microinverters might offer better value, particularly in systems that suffer from shading or irregular sunlight exposure. With module-level optimization, microinverters can maximize energy production over time, potentially resulting in higher savings. The ROI for microinverters can also be greater, as their longer lifespan means fewer replacements and lower maintenance costs.
Central inverters, while cheaper initially, may need to be replaced after 10-15 years, adding to the lifetime cost of the system. Their performance is also affected by shading, reducing the total energy output. For users with consistent sunlight or less shading, central inverters might still be the more cost-effective option.
Compatibility with Solar Panels and Battery Storage
Microinverters offer a clear advantage when it comes to panel compatibility. Because each panel operates independently, you can install panels with different orientations, wattages, and even manufacturers. This flexibility makes microinverters an ideal solution for complex rooftop layouts or when adding panels over time.
In terms of battery storage integration, microinverters tend to work better with AC-coupled systems, which are easier to install with storage batteries after the system is set up. Central inverters, typically DC-coupled, can also integrate with battery systems, but this may require additional components or modifications for later additions.
Scalability and Future-Proofing
The scalability of your solar system is another critical consideration. Microinverters are inherently more scalable than central inverters. Since each panel operates independently, adding more panels to the system is simple and doesn’t require reconfiguring the entire system. You can expand your system at your own pace, adding new panels as needed without worrying about overloading the existing inverter.
On the other hand, central inverters have a fixed capacity, meaning that once you exceed the inverter’s rated power, you would need to replace the entire inverter or upgrade to a more powerful model. This can be more costly and logistically challenging than simply adding microinverters. Additionally, because microinverters allow for modular upgrades, the system is more adaptable to future technological advancements, such as enhanced panel efficiency or new battery storage options.
Monitoring and Smart Technology
Both central inverters and microinverters come with monitoring capabilities, but the level of detail and ease of use varies significantly.
- Central inverters typically offer a single point of monitoring, where users can track the overall output of the system. While this gives a good indication of the system’s performance, it doesn’t provide granular data on individual panel performance. Issues such as shading, panel degradation, or malfunctioning components might go unnoticed until they affect the overall system output.
- Microinverters, however, offer module-level monitoring, which means users can monitor the performance of each panel individually. This allows for precise detection of underperforming panels, even before they impact the entire system. Brands like Enphase offer robust monitoring systems that allow users to track their system’s performance via an app, providing real-time data on energy production, system health, and performance analytics. This feature can be particularly useful for identifying small issues early on, preventing larger problems down the road.

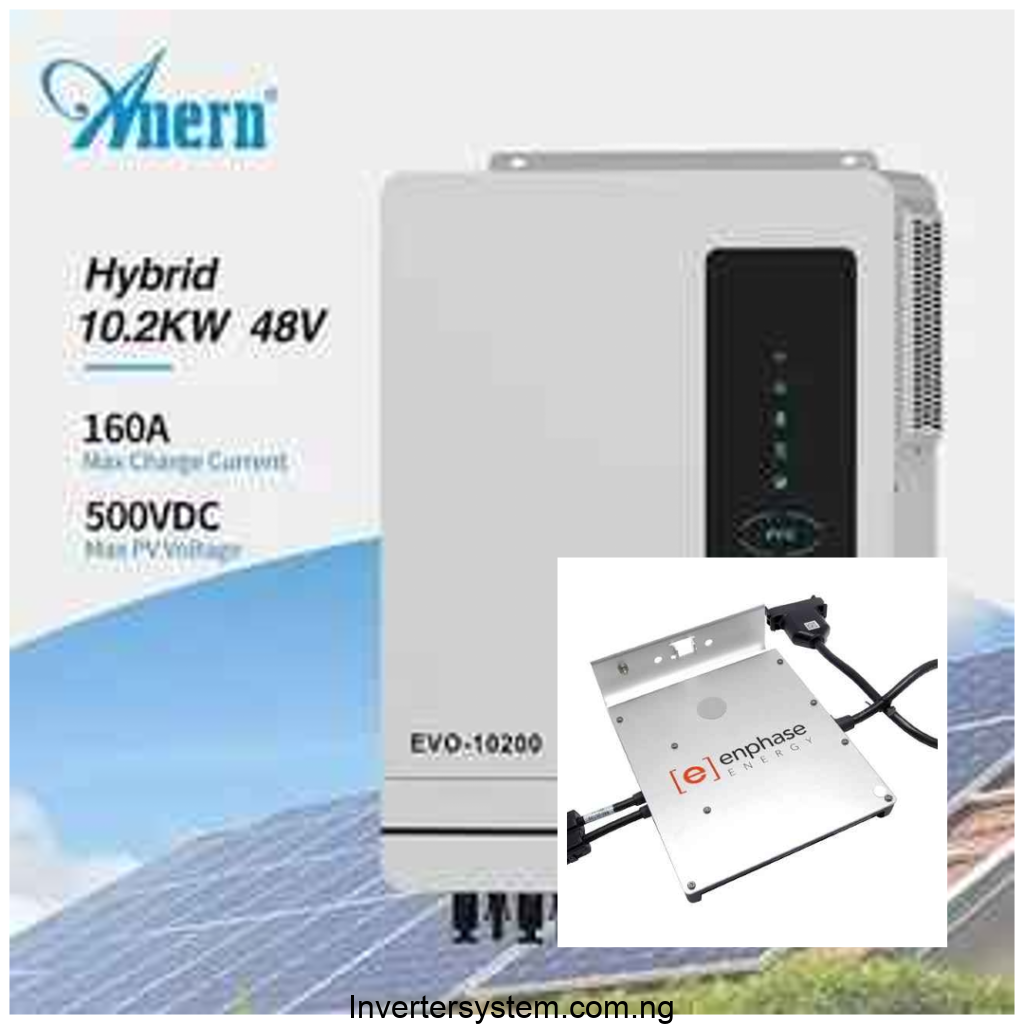

Popular Brands and Product Models
Top Central Inverter Brands
SolarEdge is a leading name in the central inverter space, known for its reliability and performance in large installations. Other reputable brands include SMA and Huawei.
Top Microinverter Brands
Enphase Energy is the industry leader for microinverters, offering robust and efficient products widely trusted in residential solar systems. They are known for excellent customer support and integration with monitoring systems for optimal performance tracking.
Pros and Cons Summary Table
| Feature | Central Inverters | Microinverters |
|---|---|---|
| Energy Efficiency | High in full sun, lower with shading | High efficiency even in shaded areas |
| Initial Cost | Lower upfront cost | Higher upfront cost |
| Maintenance | Easier consolidated maintenance | Lower risk with distributed maintenance |
| Scalability | Challenging to scale without reconfiguring | Highly scalable for individual panel additions |
| Battery Compatibility | Compatible with DC-coupled systems | More flexibility with AC-coupled systems |
| Future-Proofing | Limited upgradability | Easily upgradable on a per-panel basis |
Conclusion
Choosing between a central inverter and a microinverter largely depends on your unique solar installation requirements. If you’re working with a larger, simpler array and have consistent, unobstructed sunlight, a central inverter may be the more cost-effective solution, offering simplicity, easier maintenance, and lower initial costs. However, if you have a complex rooftop with shading, non-uniform panel placement, or if you’re planning to expand your system gradually, microinverters are likely to be the better choice. They offer superior shading performance, module-level optimization, and future scalability.
Microinverters provide the flexibility, efficiency, and long-term value that many modern solar systems demand, especially in residential settings. The upfront cost may be higher, but the enhanced performance and ability to maximize energy output can justify the investment over time. On the other hand, for large-scale installations with minimal shading and simpler setups, central inverters remain a viable option.
Now that you have the information, think about your specific needs: Do you have shading issues? Are you planning for future system expansion? By taking these factors into account, you’ll be able to make a well-informed decision that maximizes your solar energy system’s efficiency and return on investment. Whether you opt for the simplicity of a central inverter or the flexibility of microinverters, the key is ensuring that your system is tailored to your home’s energy needs.
Ready to upgrade your home’s energy efficiency? Compare the best solar inverters on the market today, and choose the one that aligns with your long-term energy goals. Don’t forget to consider how each system can work with your battery storage and solar panels to optimize your entire solar power setup. Start your search today!
