Solar Inverter Compatibility
Solar inverter compatibility is about more than just pairing two devices together. It refers to the capacity of an inverter to handle the electrical characteristics of your solar panels — from the voltage they generate to their power output.
The Role of the Solar Inverter
The primary function of the inverter is to convert the direct current (DC) electricity produced by your solar panels into alternating current (AC) electricity, which is what most appliances in your home use. However, not all inverters can process the electrical output from all solar panels efficiently. Matching solar panels with inverters requires you to consider factors like panel wattage, voltage, and the specific inverter power rating.
The Consequences of Mismatch
Using an inverter that isn’t properly matched with your solar panels can lead to serious issues. For example, if the inverter’s input voltage range doesn’t align with the voltage produced by your solar panels, the inverter could shut down or fail to function properly. Likewise, if the power output of your solar panels exceeds what the inverter can handle, you may lose excess energy, which reduces the overall efficiency of the system. In extreme cases, the mismatch could result in equipment damage, shortening the lifespan of your system.
Key Factors Affecting Solar Inverter Compatibility
Several factors determine whether a particular inverter is compatible with your solar panels. Understanding these factors will help you make informed decisions and avoid costly mistakes.
Inverter Sizing for Solar Panels
The inverter’s size refers to its capacity to process the power generated by your solar panels. This is where a solar panel inverter size calculator comes into play. By calculating the combined wattage of your solar panels, you can choose an inverter with a capacity that matches or exceeds your system’s output. For example, if your solar panels produce a combined 6kW, you should select an inverter rated for at least 6kW to prevent clipping, where the inverter limits the amount of energy it can process.
Inverter Power Rating and Panel Wattage
The power rating of the inverter must match the wattage of your solar panels. If the inverter is too small, it will “clip” excess energy, meaning some of the energy generated by your panels will be wasted. On the other hand, if the inverter is too large, it may not operate at peak efficiency because the panels won’t produce enough power to fully utilize the inverter’s capacity.
Solar Panel Voltage Range and Inverter Input Voltage
Inverters are designed to work within a certain voltage range. If your solar panels generate more voltage than the inverter can handle, it could overheat or malfunction. Conversely, if the voltage is too low, the inverter may not turn on at all. This is where tools like an inverter matching calculator are useful, as they help you determine whether the voltage output from your panels aligns with the inverter’s input voltage range.
Inverter Surge Capacity
The surge capacity of an inverter refers to its ability to handle sudden increases in energy production. For instance, if your solar panels experience a spike in output due to a sudden burst of sunlight, the inverter must be able to process that extra energy. If the surge capacity is too low, the inverter could fail or be damaged.

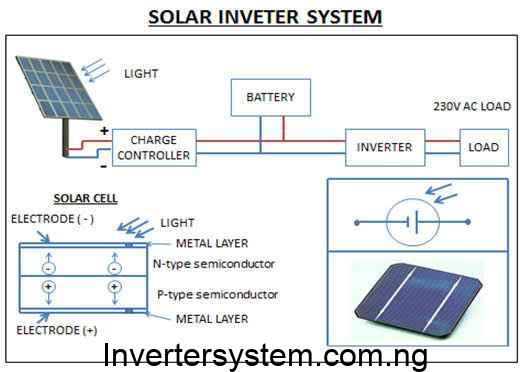

Solar Panel and Inverter Connection Types
The way you connect your solar panels — whether in series or parallel — also affects inverter compatibility. Each configuration has its own set of benefits and drawbacks.
Series and Parallel Connections of Solar Panels
In a series connection, the voltage of each panel is added together while the current remains the same. This setup is ideal for minimizing wiring costs, but it comes with a significant downside: shading. If one panel in a series configuration is shaded or damaged, it reduces the output of the entire string. Conversely, a parallel connection increases the system’s current while keeping the voltage constant. This method is more tolerant of shading but requires more wiring and components.
Series vs. Parallel Pros and Cons
The decision to connect your panels in series or parallel depends largely on the layout of your system and the specific conditions of your site. Series connections are more cost-effective and efficient in areas with consistent sunlight. However, in environments with variable shading or obstacles, a parallel configuration offers greater flexibility and reliability.
How to Match Solar Panels to Your Inverter
To achieve compatibility, you need to assess the total voltage and current generated by your solar panels. For example, if you connect 8 solar panels in series parallel, you’ll need to calculate the total voltage and current to ensure they fall within the inverter input voltage range and inverter maximum power specifications. Using a combination of series and parallel connections can help you balance the advantages of each method.

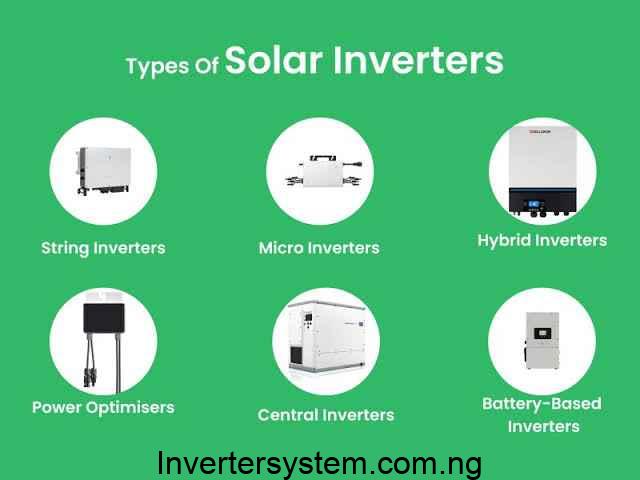

Inverter Types and Their Compatibility
Different types of inverters are suited for various applications, and your choice will depend on the specifics of your solar energy system.
String Inverters vs. Microinverters
String inverters are the most common and cost-effective option for residential solar installations. They work by connecting a string of solar panels together, converting their combined output into AC power. However, this setup is sensitive to shading, as the performance of the entire string is reduced if even one panel is shaded.
Microinverters, on the other hand, are installed on each individual panel, allowing each panel to operate independently. This makes microinverters an ideal choice for installations where shading is a concern or where the panels face different directions. However, they are more expensive than string inverters.
Hybrid Solar Inverters
Hybrid inverters are designed to work with both solar panels and battery storage systems. This type of inverter is crucial if you plan to store excess energy for later use, as it allows you to seamlessly switch between solar power, battery power, and grid power. When selecting a hybrid inverter, ensure that it is compatible with both your solar panels and your chosen battery system.
Single-Phase vs. Three-Phase Inverters
For most residential solar systems, single-phase inverters are sufficient, as they are designed to handle the electrical load of a typical home. However, for larger installations — such as those used in commercial or industrial settings — a three-phase inverter may be necessary to handle the higher energy demands.

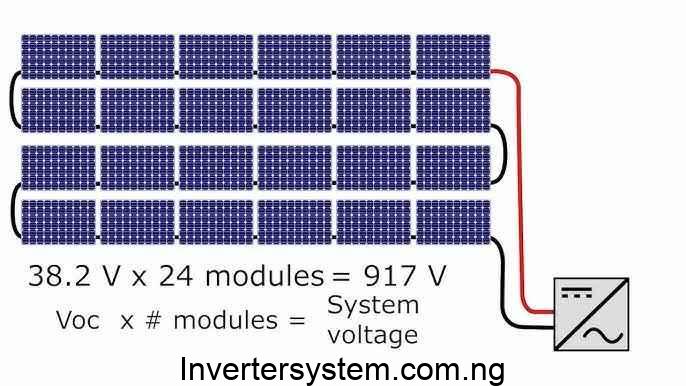

Inverter Sizing and Selection Criteria
Choosing the right inverter size is critical to the overall performance of your solar energy system. Undersizing or oversizing your inverter can lead to inefficiencies or energy loss.
Solar Inverter Capacity and Power Rating
The capacity of the inverter should match the maximum power output of your solar panels. Oversizing your inverter slightly — by around 10% — can provide flexibility for future expansion of your solar array. However, oversizing it too much could lead to reduced efficiency, as the inverter may not operate at its optimal capacity if the solar panels consistently produce less power than the inverter can handle.
Inverter Oversizing vs. Undersizing
Inverter oversizing allows for more energy to be processed on days when your solar panels are producing above-average amounts of power, such as during periods of intense sunlight. However, it’s important not to oversize too much, as this can cause the inverter to operate inefficiently when the solar panels are producing less power. On the other hand, inverter undersizing results in energy clipping, where the inverter limits the amount of energy it processes, wasting any excess power produced by the panels.
How Do I Choose an Inverter for My Solar System?
Choosing the right inverter requires a careful assessment of your solar array’s output, the voltage range of your panels, and your future energy needs. If you’re unsure, using a solar panel inverter size calculator or consulting a professional can help ensure that your inverter selection matches your system’s requirements.
Efficiency and Performance of Solar Inverters
The efficiency of an inverter directly impacts the overall performance of your solar energy system. Higher efficiency means more energy is converted and less is wasted.
DC to AC Conversion Efficiency
Modern inverters are designed to convert as much DC electricity into AC electricity as possible, with most offering conversion efficiencies of 95% or higher. However, even a small difference in efficiency can lead to significant energy losses over time, particularly in large systems. Choosing an inverter with a high conversion efficiency is essential to maximizing your energy output and return on investment.
Inverter Surge Capacity
Surge capacity is the inverter’s ability to handle sudden spikes in energy production. This is particularly important for off-grid systems or systems where energy demand fluctuates significantly throughout the day. Ensuring that your inverter has adequate surge capacity will prevent it from shutting down during periods of high energy production or demand.

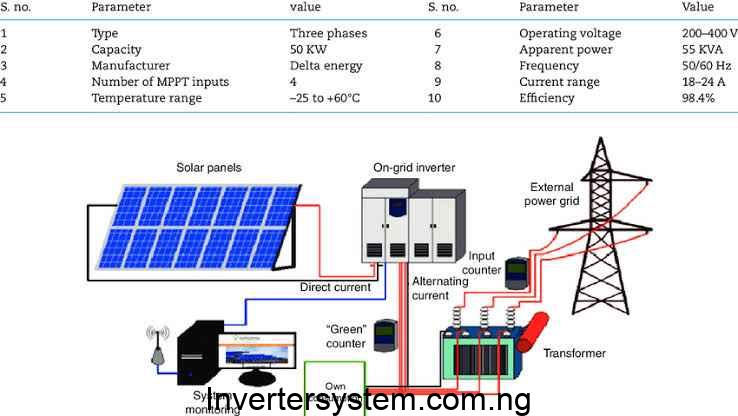

Technical Specifications for Solar Inverter Compatibility
Solar panels and inverters each have a set of technical specifications that must be aligned to ensure compatibility.
Inverter Maximum Power and Input Current
The maximum power rating of the inverter determines how much electricity it can handle at any given time. If the combined power output of your solar panels exceeds this maximum rating, the inverter will cap or “clip” the excess power, meaning that some energy will be lost. This is why the inverter’s maximum power should either match or slightly exceed the maximum power output of your solar panels. The input current specification is equally important — it indicates the maximum amount of current the inverter can handle. If the input current from the panels exceeds the inverter’s rating, it may overheat or become damaged.
Voltage and Frequency Ranges
Inverters are designed to operate within specific voltage ranges. The total voltage produced by your solar panels — based on their configuration in series or parallel — must fall within this range to ensure the inverter functions properly. Similarly, the inverter needs to match the frequency of your local grid, typically 50Hz or 60Hz, depending on your region. Using an inverter that doesn’t match your local grid frequency can cause synchronization problems, leading to inefficiency or equipment failure.
Inverter Efficiency Rating
Inverter efficiency is a critical measure of how well the inverter converts DC power from your solar panels into AC power for your home. Most high-quality inverters have an efficiency rating of over 95%, but even small differences in this rating can have a significant impact on the amount of usable electricity your system produces over time. Look for inverter efficiency ratings or certifications from reputable standards organizations such as Euro Efficiency or CEC Rating for assurance of high performance.

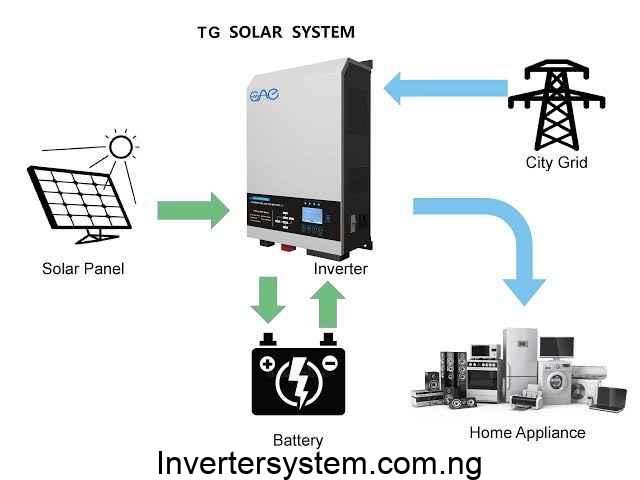

Interchangeability of Solar Inverters
One common question is whether solar inverters are interchangeable. The short answer is: it depends. Not all inverters are universally compatible with all solar panels, but certain inverter designs can work with multiple systems.
Standard Inverters
Most standard inverters are designed to work with a wide range of solar panels, provided that the voltage, current, and power output are within the inverter’s operational limits. However, different brands may have proprietary technology, and it’s always recommended to check the manufacturer’s guidelines or consult with a professional to ensure compatibility.
Tesla Solar Inverter Compatibility
If you’re using a Tesla Powerwall or any other Tesla solar energy product, it’s important to note that not all inverters will be compatible. Tesla’s inverters are designed to integrate seamlessly with their Powerwall, which means if you plan to add energy storage to your solar system, you may need a Tesla-specific inverter or a hybrid inverter that works with their technology. Be sure to review Tesla’s compatibility charts or consult an expert before making a decision.
Hybrid and Battery-Compatible Inverters
If you’re planning to expand your solar system with battery storage, selecting a hybrid inverter that can manage both solar and battery inputs is crucial. These inverters are typically designed to be future-proof, allowing you to add energy storage later on without replacing the entire system. Keep in mind that not all battery systems are compatible with all hybrid inverters, so it’s essential to check for compatibility before purchasing.
Practical Considerations for Solar Inverter Compatibility
In addition to technical specifications, there are several practical considerations that influence the overall compatibility and performance of your solar inverter.
Environmental Conditions
The environment in which your solar inverter operates can have a big impact on its performance and lifespan. Inverters are sensitive to temperature extremes, and many have a rated operating temperature range. If your inverter is installed in an area that experiences extreme heat or cold, you’ll need to ensure it is properly ventilated or housed in a temperature-controlled environment to prevent overheating or freezing.
Shading and Solar Inverter Performance
Shading has a significant effect on the performance of solar panels, particularly when using a string inverter. When panels are connected in series, shading on one panel reduces the output of the entire string. In environments where shading is unavoidable, microinverters or power optimizers may be a better option, as they allow each panel to operate independently, minimizing the impact of shading on your system’s overall performance.
Future Expansion
If you plan to expand your solar array in the future, it’s important to choose an inverter that can accommodate additional panels. Inverter oversizing is a common strategy for allowing room for future expansion. However, you’ll need to ensure that the inverter’s voltage and current ranges can still handle the increased load after expansion. Be mindful of inverter warranties and certifications when considering system upgrades.
Conclusion: Achieving Optimal Solar Inverter Compatibility
Ensuring solar inverter compatibility is a crucial step in optimizing the performance and efficiency of your solar energy system. Whether you’re connecting a few panels for residential use or setting up a large commercial array, the key is to understand the technical requirements and practical considerations involved. Inverter sizing, panel configurations, environmental conditions, and future expansion plans all play important roles in this process.
By carefully selecting an inverter that matches the specifications of your solar panels, you can avoid common pitfalls such as energy loss, system inefficiency, and equipment failure. Tools like solar panel inverter size calculators and consulting with professionals can provide additional guidance in making the right decision. With the right inverter in place, you’ll maximize the energy output of your solar panels and ensure the long-term reliability of your solar power system.
Now that you know the essentials of matching your solar inverter with your solar panels, you’re well on your way to a highly efficient and reliable solar energy setup. If you’re unsure or need assistance with sizing and compatibility, consulting with a professional installer will give you peace of mind.
